The primary pupose of this event generator for the reaction e p -> e' n &pi⁺ &pi⁰ ,
is to generate a background for the reaction    e p -> e' n &pi⁰, where proton is inside deutron.

The figures below show the comparison of the missing mass off (e pi+) for a number of (W-Q²) bins.
Black lines present the preliminary raw distributions obtained from clase1-6 data
for the reaction e p -> e' (n) &pi⁰ &pi⁺ on deutron target.
Red lines present distribution from the sum of two Event Generators:
EG for e p -> e' n &pi⁺ and this EG for e p -> e' n &pi⁺ &pi⁰ .
Generated events passed through GSIM.
W and Mising mass are in GeV. Q² is in GeV².

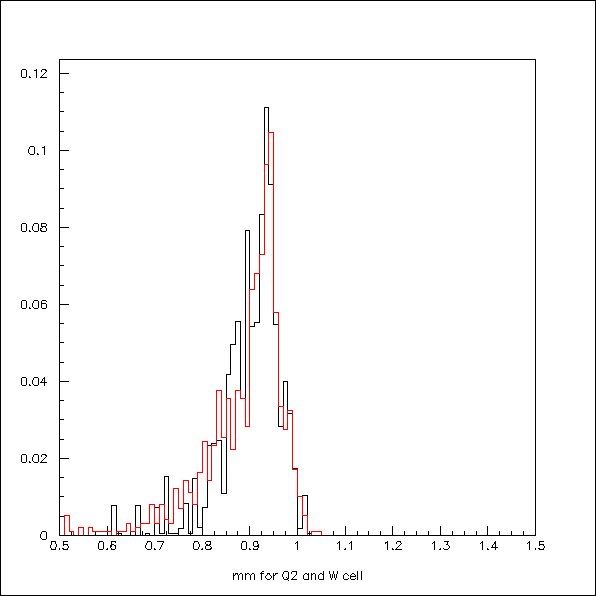

             0.2 < Q² < 0.4     0.90 < W < 0.95

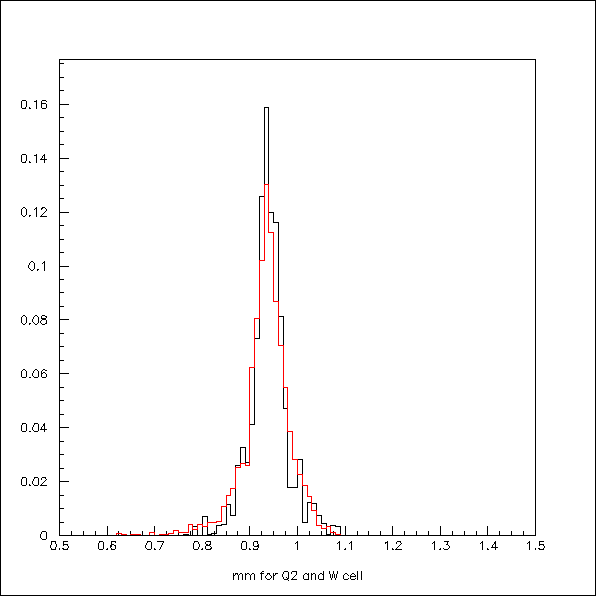

             0.2 < Q² < 0.4     1.00 < W < 1.05

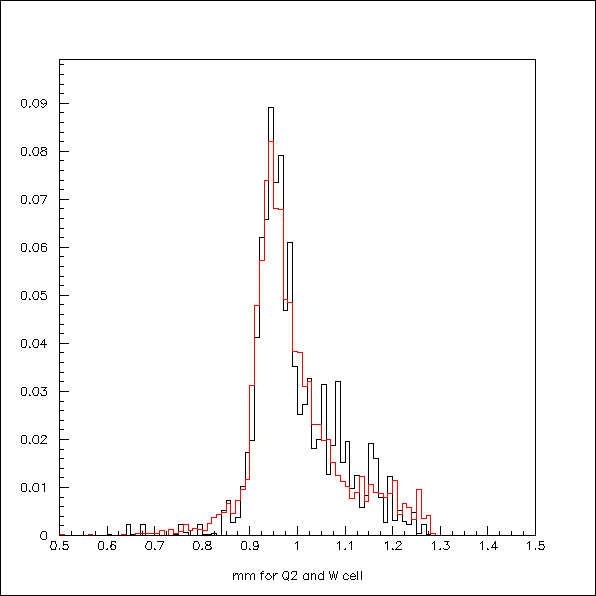

             0.2 < Q² < 0.4     1.20 < W < 1.25



             0.2 < Q² < 0.4     1.30 < W < 1.35

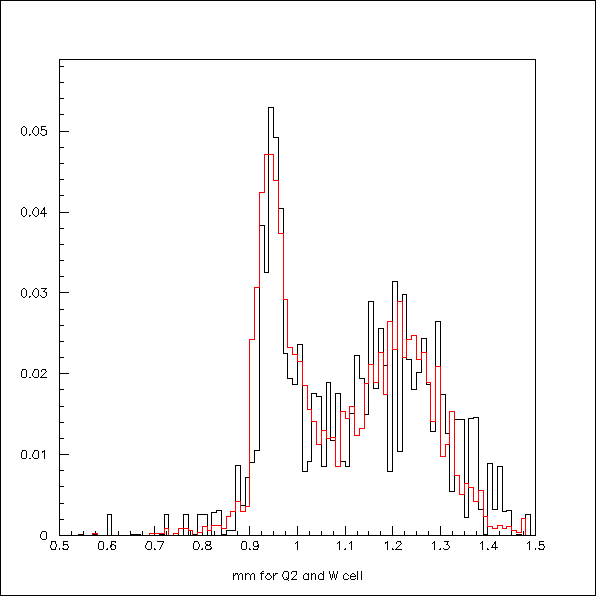

             0.2 < Q² < 0.4     1.40 < W < 1.45

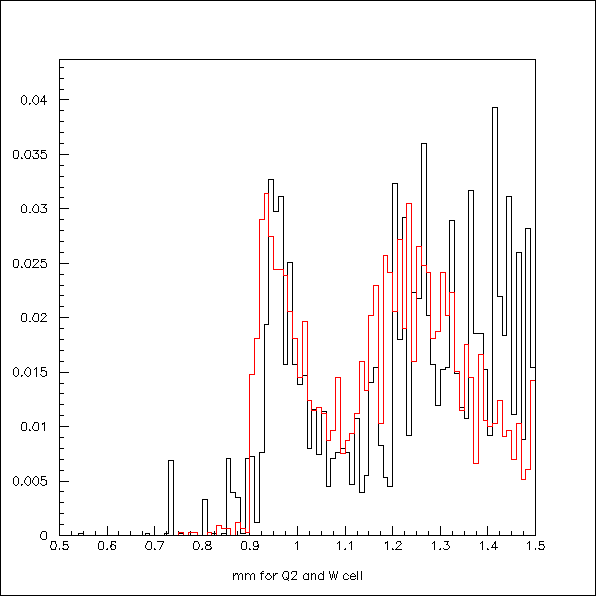

             0.2 < Q² < 0.4     1.60 < W < 1.65

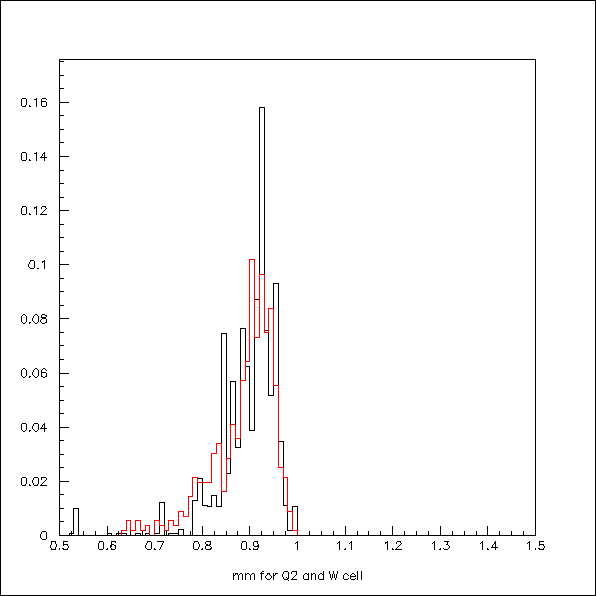

             0.4 < Q² < 0.6     0.90 < W < 0.95

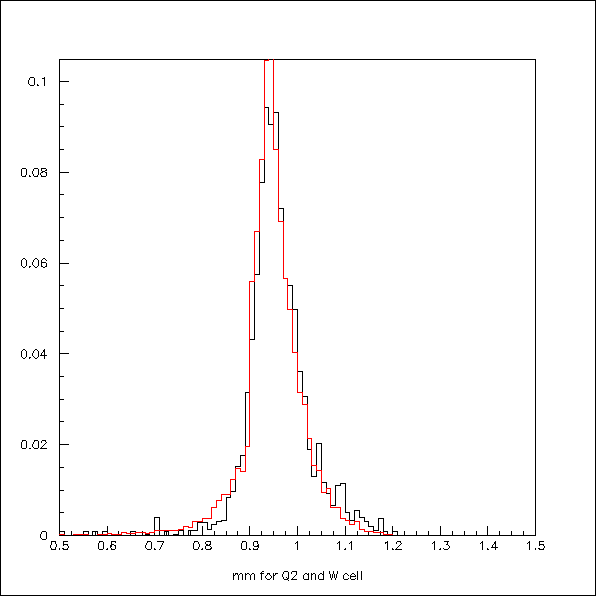

             0.4 < Q² < 0.6     1.10 < W < 1.15



             0.4 < Q² < 0.6     1.30 < W < 1.35

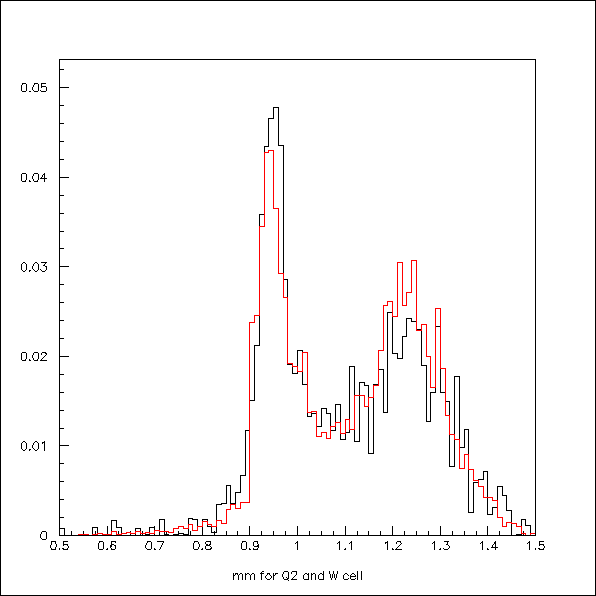

             0.4 < Q² < 0.6     1.40 < W < 1.45



             0.4 < Q² < 0.6     1.60 < W < 1.65



             0.6 < Q² < 0.8     0.90 < W < 0.95

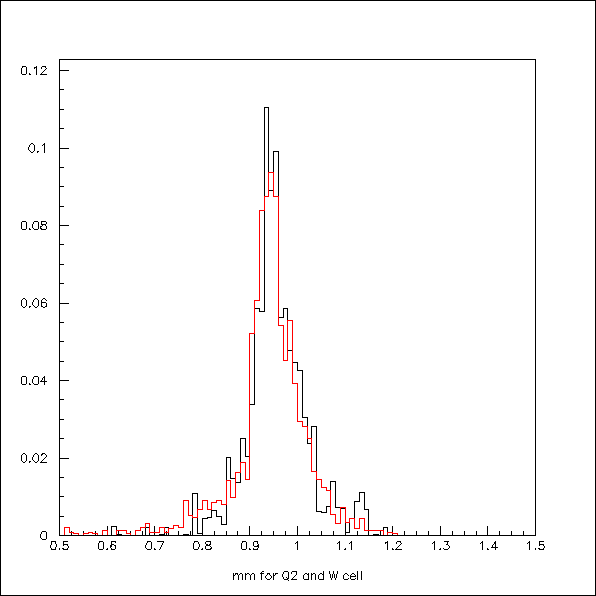

             0.6 < Q² < 0.8     1.10 < W < 1.15



             0.6 < Q² < 0.8     1.20 < W < 1.25

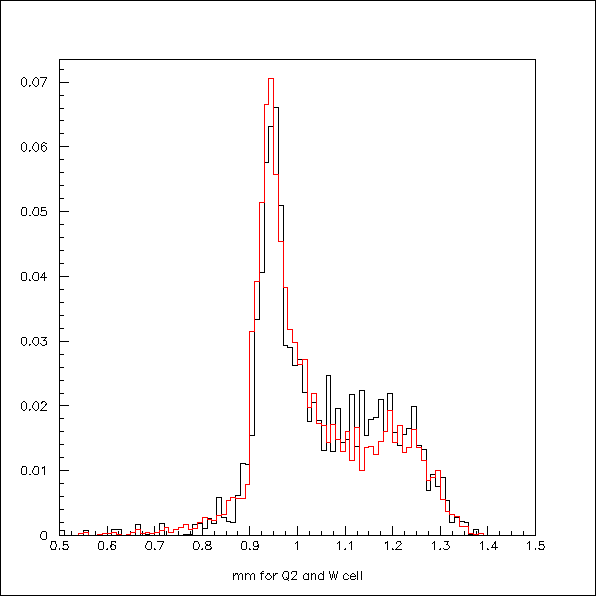

             0.6 < Q² < 0.8     1.30 < W < 1.35

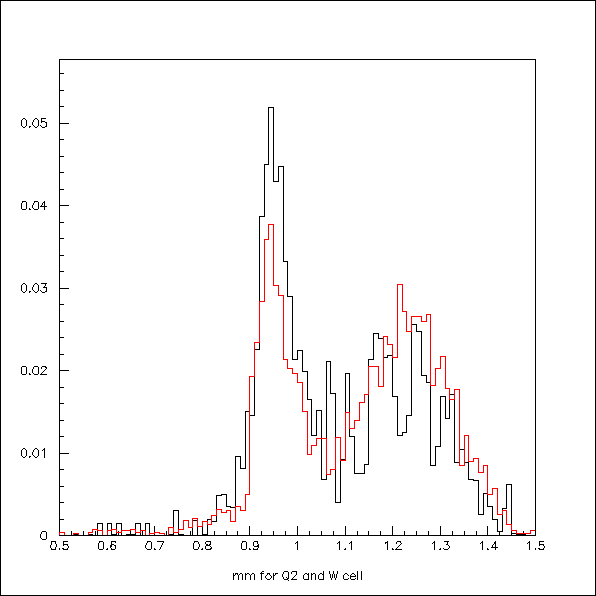

             0.6 < Q² < 0.8     1.40 < W < 1.45

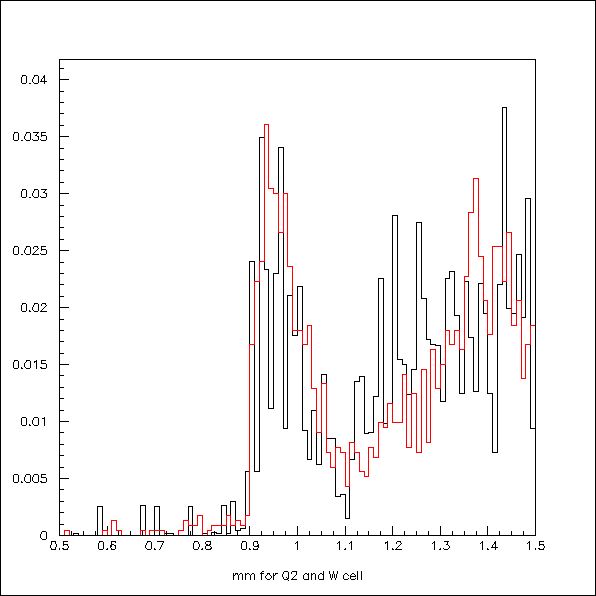

             0.6 < Q² < 0.8     1.60 < W < 1.65

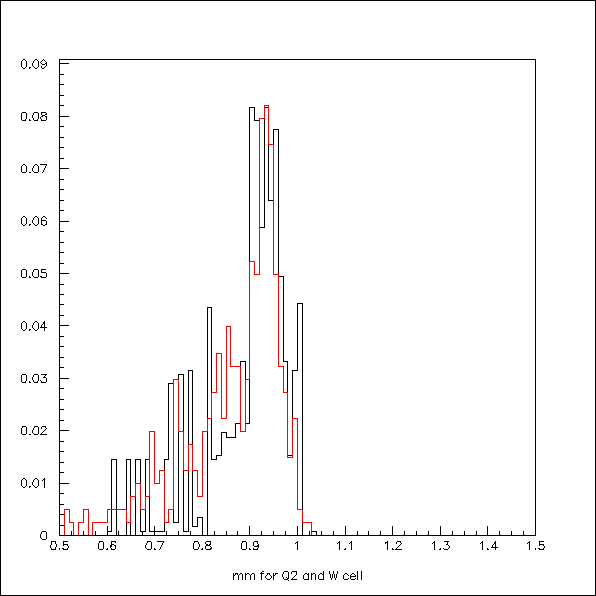

             0.8 < Q² < 1.0     0.95 < W < 1.00

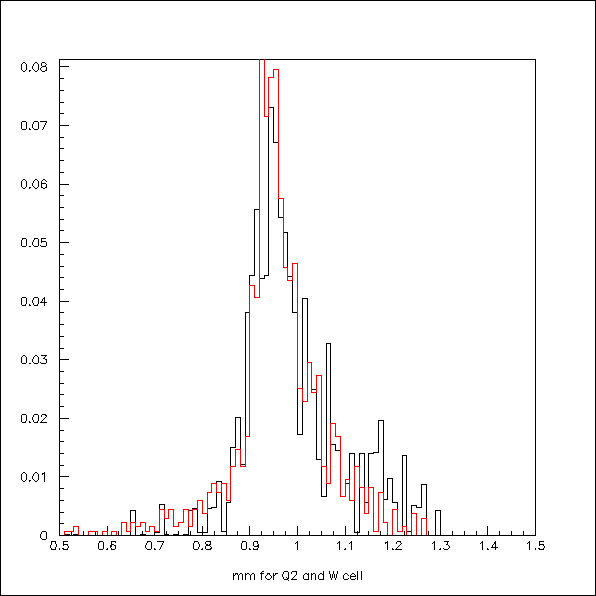

             0.8 < Q² < 1.0     1.20 < W < 1.25

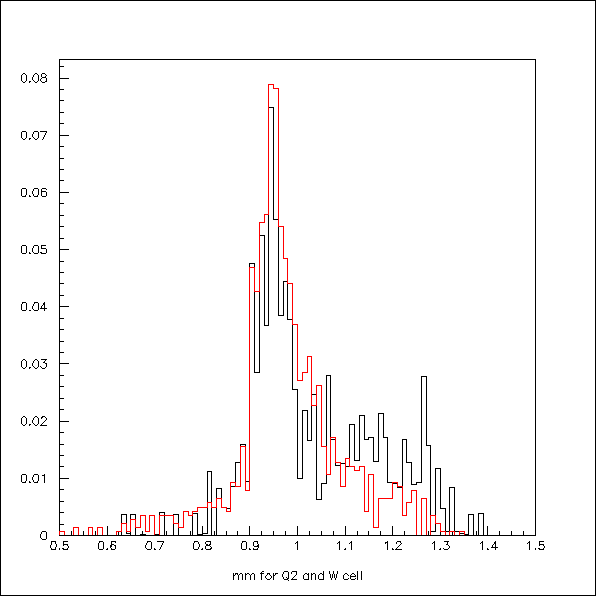

             0.8 < Q² < 1.0     1.30 < W < 1.35

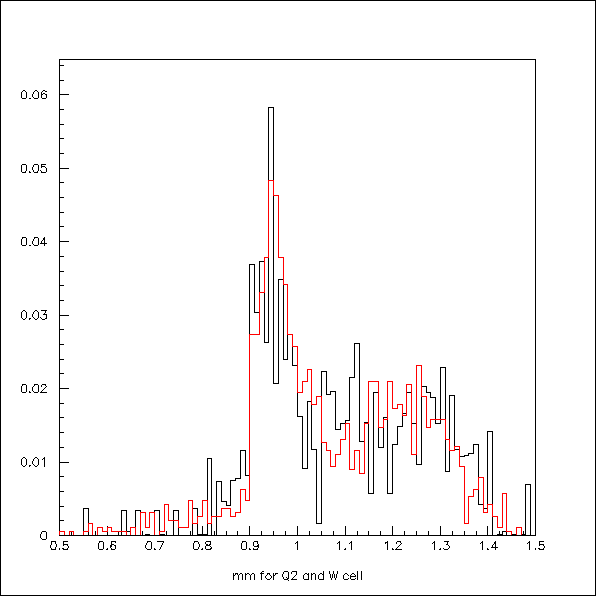

             0.8 < Q² < 1.0     1.40 < W < 1.45

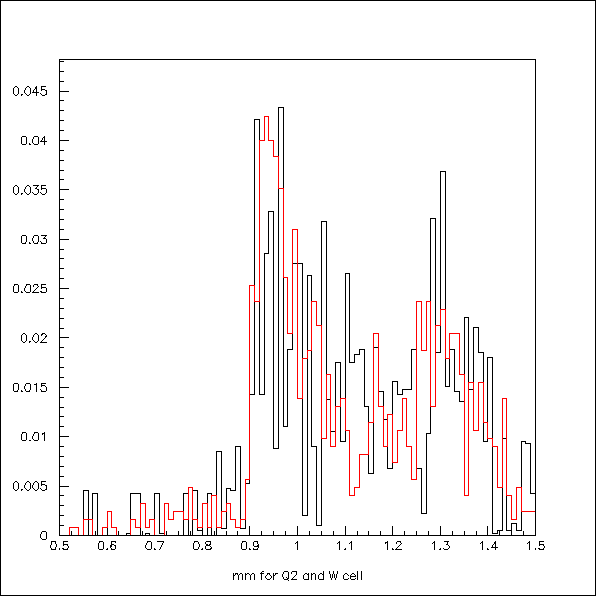

             0.8 < Q² < 1.0     1.50 < W < 1.55
